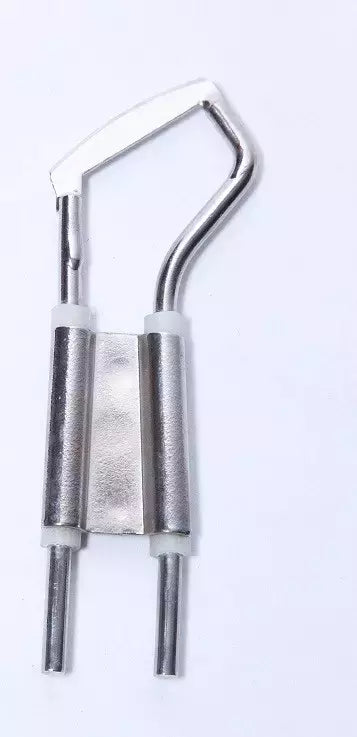

Heat Cutter Blade HSGM Type R OEM General-Use for Synthetic Fabrics - 92mm

The original OEM HSGM Type R heat cutter blade is designed for reliable, general-purpose cutting of synthetic fabrics, webbing, and ropes up to 17mm in diameter. It is a strong choice for straight-line cutting where clean edges and consistent heat performance matter.

Also known as the 100R blade, this replacement blade is crafted by HSGM GmbH and built for use with compatible HSGM heat cutting units. Its 92mm total length, 29mm blade tip width, and 1mm beveled tip thickness support controlled cutting performance for demanding shop and production work.

Key details:

• OEM HSGM Type R blade
• General-use blade for synthetic fabrics, webbing, and ropes
• Suitable for straight-line cutting
• Max cutting range: up to 17mm diameter
• Total blade length: 92mm (3.62")
• Blade tip width: 29mm (1.14")
• Blade tip thickness: 1mm with beveled edge
• Max blade tip temperature: 1100º F

For best results, HSGM recommends using a 1/4" thick glass cutting surface. Glass helps concentrate heat into the cutting process and is easy to clean after use. Compatible power units listed for this blade include HSG-0, HSG-1-VW, HSG-03-VW, and HSG-3-VW.
